PIT Timer Unit for AMF 82-70 Pinspotter

Turns off backend motor and/or ball return motor after a period of bowler inactivity
Pit Timer Unit - kit

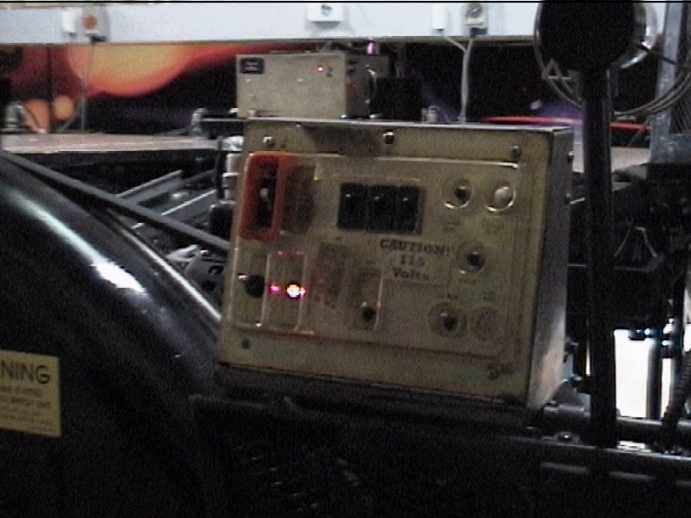

Pit Timer Unit - installed

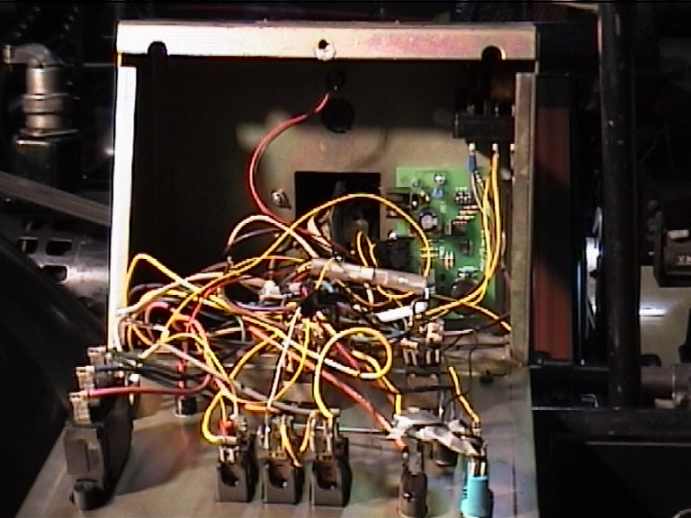

Pit Timer Unit
Pit Timer Unit - Warning Label




  • Automatically shuts off power to back-end motor and/or ball return after a predetermined (adjustable) period of bowler inactivity
  • Ball hitting cushion restarts backend and ball return (after a five second warning)
  • Saves power (see below)
  • Saves wear and tear on machine parts
  • Reduces unnecessary noise in the pit area
  • Microprocessor controlled
  • Can be fitted either inside the chassis or inside the rear control box
  • Works with 5 board chassis, XOP or Omegatek boards
  • Works with MP chassis
  • Quick field installation
  • Incorporates independent on-off circuits for back-end motor and ball return
  • 12 month warranty
  • High intensity LEDs supplied can be fitted to chassis or rear control box to warn for "standby mode "
  • Audible warning before machine starts up from " standby mode "
  • Includes kit of fittings
  • Pit can easily be set to continuous run for maintenance purposes
  • Wiring harness plugs into top of board for easy fitting/removal

Current draw on motor startup is about three times running current draw.
On average, motor startup (both start and run windings in circuit) lasts around 1/2 a second.
This means that every time the motor is off for more than about 2 seconds, you are saving on electricity cost.





Fitting guides:




Price and shipping information
Part No. Description Weight Price (Australia)
ASU-70BE Pit Timer Unit (BE Control Box version) 0.2kg AUD $98.50
  This product is being superseded by ASU-PLUS - limited stock available
  Shipping within Australia by Fastway
  Shipping within Australia by Australia Post
  Shipping outside Australia by TNT
  Shipping outside Australia by UPS
  Ordering information           Order Form
  Price is shown in Australian Dollars (not including GST).
Please use the Universal Currency Converter to convert          >>>         >>>
to your own currency or email us for information.
Price shown is for up to 10 units - please enquire about quantity pricing




Available from:
United Kingdom Embassy Services Phone 1227 719799
Japan Ace Bowling Tech
Netherlands, Belgium, Luxemburg BRS Bowling Services
Australia Eastern Bowling
Australia Cybernetic Solutions/tenpintec
All other places Cybernetic Solutions/tenpintec
Note that suppliers' prices may vary from prices listed on this page due to
added transport costs, import duties and other government charges.
