MachineMinder
Pinspotter and Pinsetter Safety System
Infra-red intrusion detection and electrical shut down

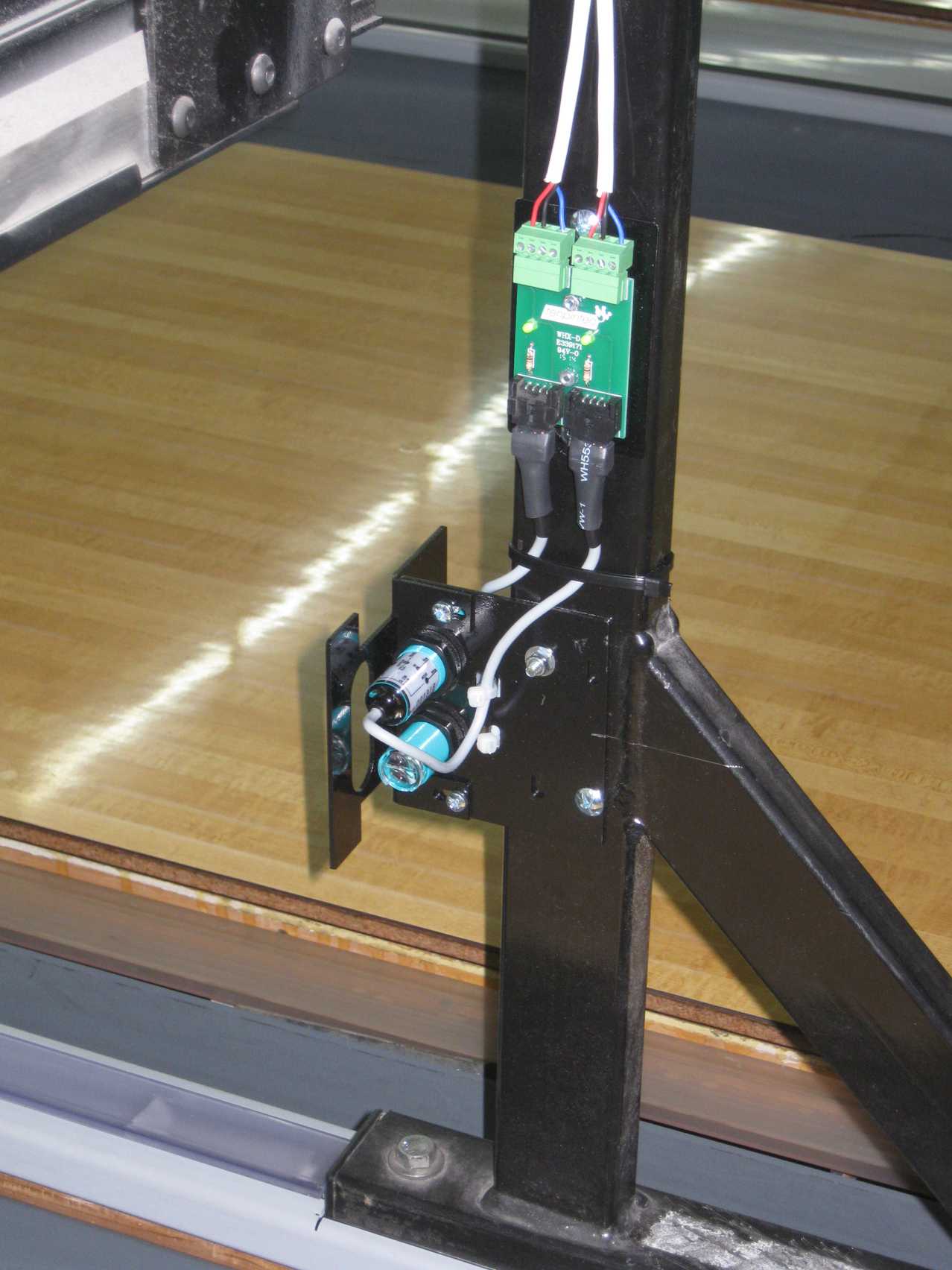

Photo - MachineMinder IR and junction board mounted on mask unit leg    Photo - Machine Minder IR sensor mounted on mask unit leg

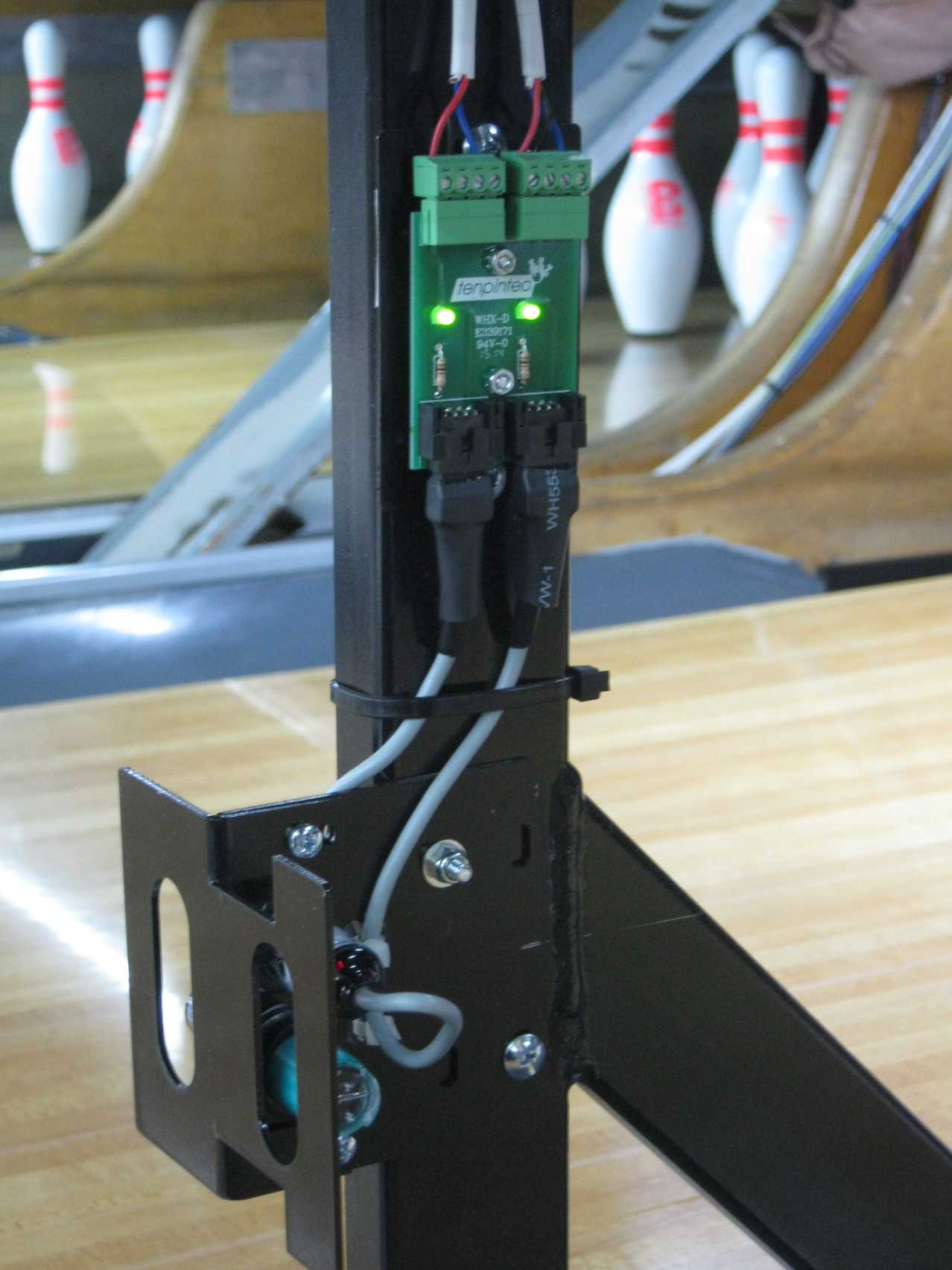

On the IR assembly, one IR faces left and monitors one lane pair, and one IR faces right and monitors the next lane pair

tenpintec logo
  • MachineMinder is a Pinspotter/Pinsetter safety system, totally separate from, and not connected to LaneMinder
  • MachineMinder looks after the machines themselves with an IR beam across the front of each machine pair connected to a MachineMinder Cutout-2 Module that in turn is connected to both machines of a pair and will turn them off when the IR beam detects an intrusion
  • The MachineMinder Cutout-2 Kit is an important step in the ultimate compliance with the AS4024 Australian machine safety standard. Further steps to full compliance will include machine guards and interlock switches as well as total mains power isolation when an E-Stop or machine intrusion event is detected
  • Note: A guard preventing entry to the area between the mask units and the machines from the machine side, and a guard preventing a person from moving (or extending a limb) sideways from machine to machine behind the mask units will also be required for safety if these are not already in place
  • Quick field installation
  • 12 month warranty
  • IR beam units and reflectors are easily mounted on the mask unit supports and the Cutout-2 Module is normally mounted on the machine side of the curtain wall

Contact your public risk insurer and ask if they give premium discounts where a safety device such as MachineMinder is installed.


A MachineMinder Basic kit for a pair of lanes consists of:
  • 1 x MachineMinder Cutout-2 Module
  • 1 x IR Transmitter/Receiver
  • 1 x IR Junction Module
  • 1 x High Quality Reflector
  • 1 x Cat-5 cable 4m
  • 1 x IR Bracket Assembly (for multiple lanes, less than one per pair may be required)
  • 1 x Reflector Bracket Assembly (for multiple lanes, less than one per pair may be required)

24VDC Power Supply is also required - one or more depending on number of lanes and layout


An Interface Kit for each machine or pair of machines is also required
  • AMF 82-70SS Pinspotter (each)
  • AMF 82-70MP Pinspotter (each)
  • AMF 82-90XL Pinspotter with EPO switches on Front End Box (pair)
  • AMF 82-90XL Pinspotter without EPO switches on Front End Box (pair)
  • AMF 82-70XLi or 82-90XLi Pinspotter (pair)
  • Brunswick A/A2 Pinsetter (each)
  • Brunswick GS92 GS96 GS98 Pinsetter (each)
  • Brunswick GSX Pinsetter with no guard package (each)
  • Brunswick GSX Pinsetter with Basic Guard package (each)
  • Brunswick GSX Pinsetter with Advanced Guard package (each)


Photo - MachineMinder Cutout-2 Module mounted on curtain wall

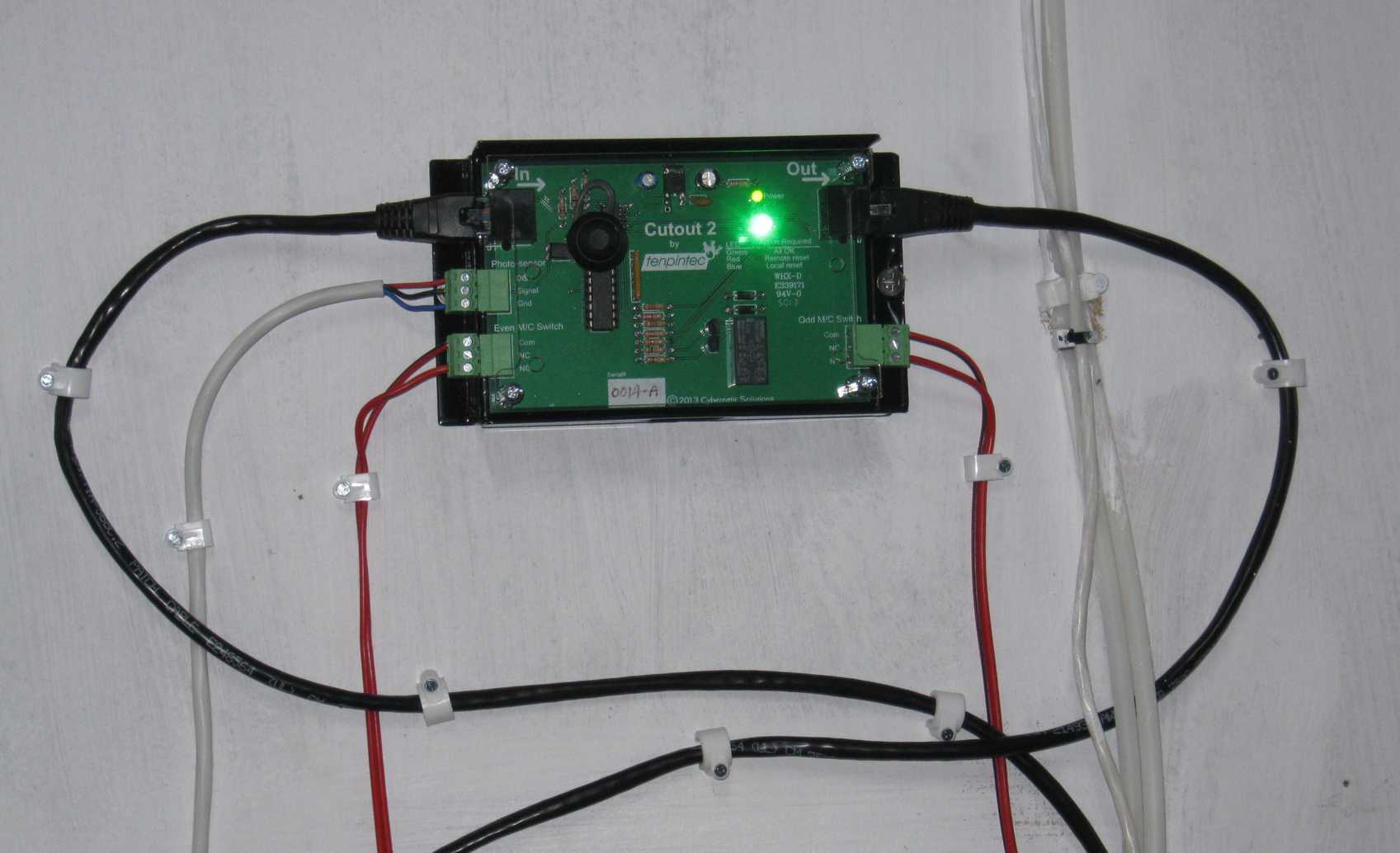

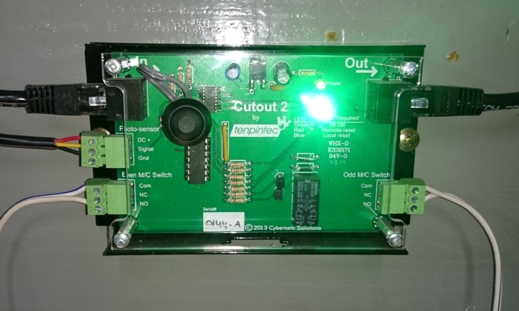

MachineMinder Cutout-2 Module mounted on curtain wall - monitors infra-red (IR) beam and signals Pinspotter or Pinsetter pair to shut down when intrusion is detected


Green (steady) LED indicates "all ok"

Blue (flashing) LED indicates that an intrustion has been detected

Red (flashing) LED indicates that a remote E-Stop or Panic Button (if fitted) has been activated



Photo - MachineMinder IR reflector mounted on mask unit leg

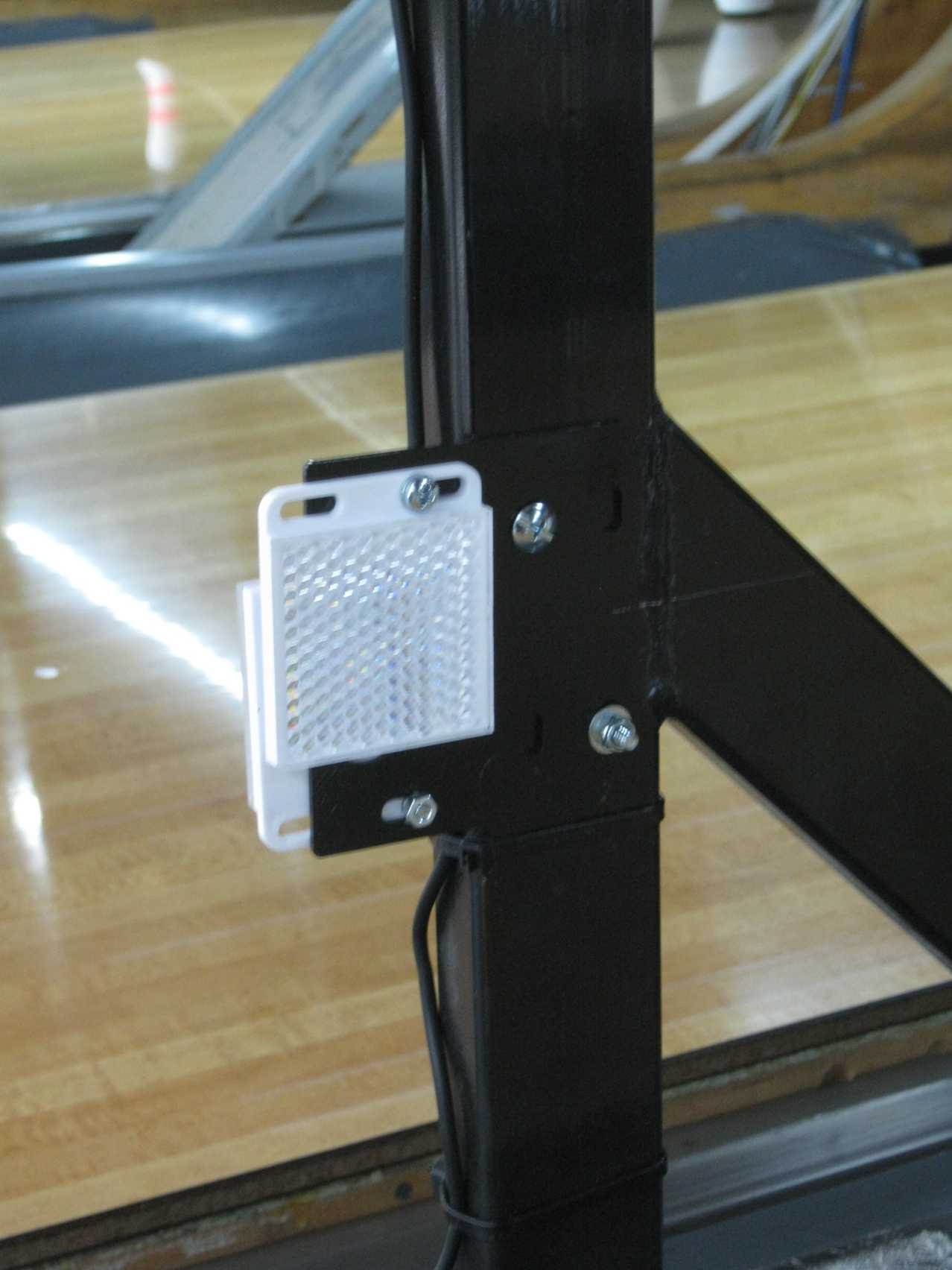

IR reflector assembly mounted on mask unit leg

Schematic graphic - MachineMinder layout for a 24 lane bowling centre

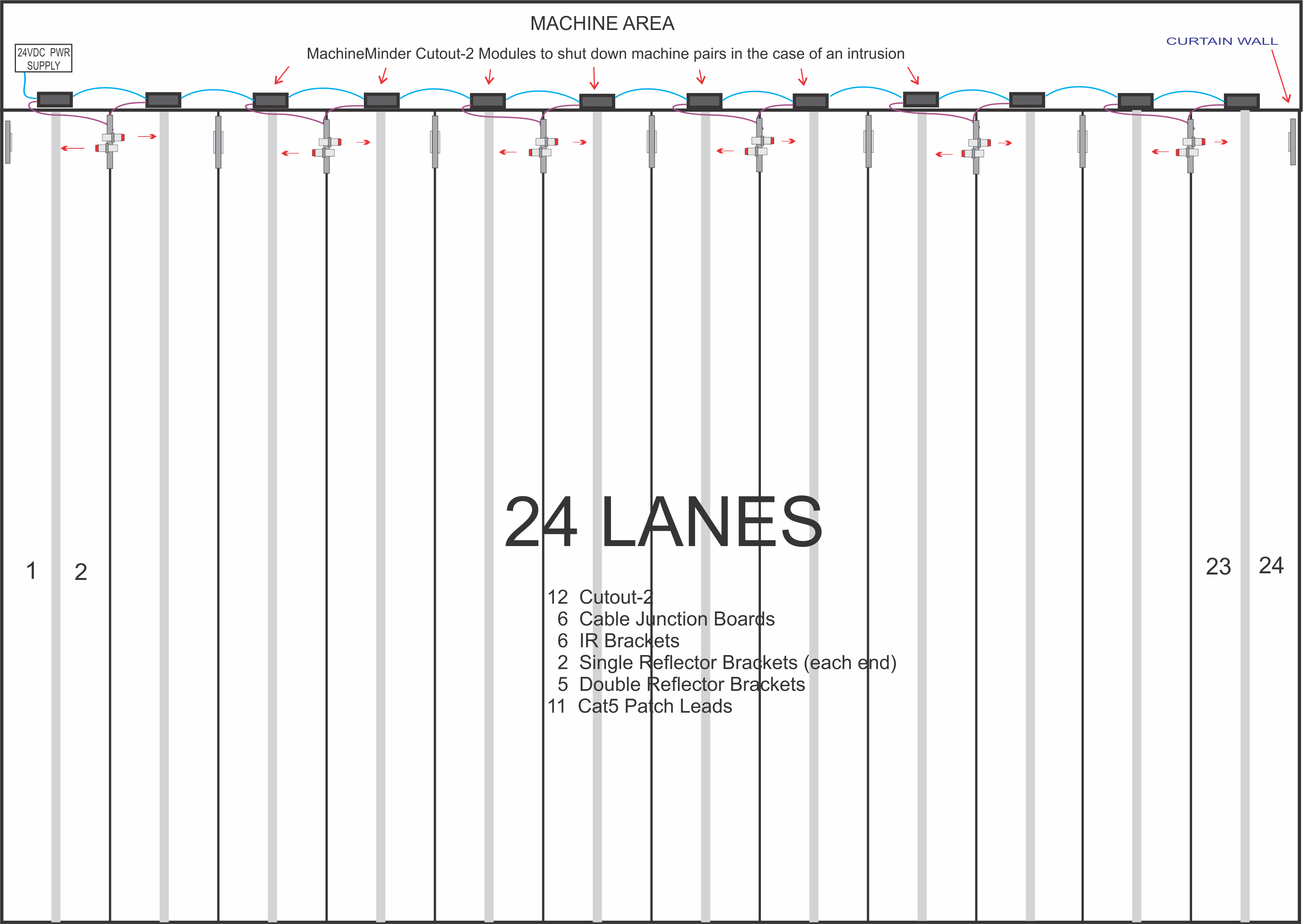

Example schematic layout of a 24 lane bowling centre


Fitting guides:
  AMF 82-70SS   Revised 29 DEC 2022
  AMF 82-70MP   Revised

29 DEC 2022



  AMF 82-90XL with EPO on FE Box   Revised 29 DEC 2022
  AMF 82-90XL without EPO on FE Box   Revised 29 DEC 2022
  AMF 82-70XLi and 82-90XLi   Revised 29 DEC 2022
  AMF XLi Edge   Revised 29 DEC 2022
  Brunswick A and A2   Revised 31 DEC 2022
  Brunswick GS92 GS96 GS98
  Brunswick GSX with no guard pack
  Brunswick GSX with Base Guard   Revised 29 DEC 2022
  Brunswick GSX with Advanced Guard

Ordering information
Part No. Description
CS-MM-002 MachineMinder Basic with IR Module
CS-MM-081 MachineMinder Interface Kit - AMF 82-70SS (1 req per machine)
CS-MM-082 MachineMinder Interface Kit - AMF 82-70MP (1 req per machine)
CS-MM-083EPO MachineMinder Interface Kit - AMF 82-90XL with EPO (1 req per pair)
CS-MM-084 MachineMinder Interface Kit - AMF 82-70XLi 82-90XLi (1 req per pair)
CS-MM-085-A MachineMinder Interface Kit - Brunswick GSX with Advanced Guard (1 req per machine)
CS-MM-085-B MachineMinder Interface Kit - Brunswick GSX with Base Guard (1 req per machine)
CS-MM-086-H MachineMinder Dual Channel Safety Relay Module - Horizontal
CS-MM-086-V MachineMinder Dual Channel Safety Relay Module - Vertical
CS -MM-087-AE MachineMinder HV Module - AMF 82-90XL without EPO
CS-MM-087-B MachineMinder HV Module - Brunswick 3 phase

  Accessories and Spare Parts
CS-MM-021 MachineMinder Cutout-2 Module
CS-MM-031 MachineMinder Junction Module
CS-MM-061 MachineMinder IR Bracket Assy
CS-MM-071 MachineMinder Reflector Bracket Assy with Single Reflector
CS-MM-072 MachineMinder Reflector Bracket Assy with Double Reflector
ALSB022 Infrared PhotoElectric Switch unit


Available from
