Products
Mask Matrix

MaskMatrixP3

and

MaskMatrixP5

LED Matrix Panel for Mask Unit




Displays Lane Number, 1st Ball, 2nd Ball, Foul, Strike, STOP and more.

tenpintec logo


MaskMatrixP5 with red asterix setting for 1st and 2nd ball
Machine is on 1st ball




MaskMatrixP5 with red asterix setting for 1st and 2nd ball
Machine is on 2nd ball


MaskMatrix
  • MaskMatrixP3 - based on a 64x32 P3 (3mm pixel spacing) RGB LED panel
  • MaskMatrixP5 - based on a 64x32 P5 (5mm pixel spacing) RGB LED panel
  • Works on all Pinspotter and Pinsetter models
  • Attach to existing mask unit frame
  • Easy field installation
  • 12 month warranty
  • Many colour and display options are selectable by menu buttons located on the pcb
  • Display can be factory configured to suit individual requests
  • MaskMatrixP5 has 4 factory configurable inputs - to customer requirements
  • MaskMatrixP5 has 4 factory configurable outputs - to customer requirements
  • ATMEGA 2560-16AU based microcontroller
  • Powered from the Pinspotter or Pinsetter (12-30Vac or dc)
  • Optional 12Vdc input (user supplied plugpack) to show lane number while machine is off


MaskMatrixP5


MaskMatrix Features
  • Colours for each display element are selectable using the menu buttons on the rear pcb
  • Lane number only will display when machine is off (if 12Vdc plug pack is connected)
  • 8 different colours are available for Lane Number when lane is off
  • 8 different colours are available for Lane Number when lane is on
  • 1st or 2nd Ball display element will light when machine is turned on
  • Several 1st Ball and 2nd Ball colours and formats are menu selectable
  • Strike will flash 10 times when signal is received from machine
  • Strike element colour is user selectable via the menu buttons
  • Foul will flash 10 times when signal is received from machine
  • STOP will flash for as long as the MaskMatrix is receiving input from Pit Signal (Trouble Call)


Connect Pit Signal (Trouble Call) from the machine via a suitable relay to display a flashing red "STOP".

You could also have one of the MaskMatrix outputs configured to run an audio or visual indicator at the ball return.



MaskMatrixP5 - one of the many display options for 1st Ball



MaskMatrixP5 - one of the many display options for 2nd Ball



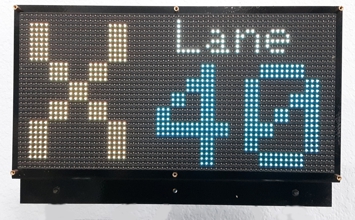

MaskMatrixP5 - STRIKE on Lane 40!

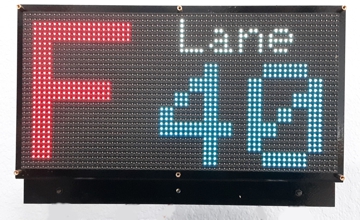

MaskMatrixP5 - FOUL on Lane 40!



MaskMatrixP3 - one of the many display options for 1st Ball



MaskMatrixP3 - one of the many display options for 2nd Ball



MaskMatrixP5 - alternate display 1st Ball



MaskMatrixP5 - alternate display 2nd Ball



MaskMatrixP5 - alternate display FOUL



MaskMatrixP3 - one of the menu-selectable colours for STRIKE


Fitting guides:
  MaskMatrixP3   08 AUG 2023 1415KB
  MaskMatrixP5   16 OCT 2023 471KB

Ordering information
Part No. Description
CS-M05-P3 MaskMatrix P3 1.0kg
CS-M05-P5 MaskMatrixP5 2.0kg
  Accessories and Spare Parts
CS-M05-A01 MaskMatrix Adapter for Edge and GS 0.1kg










Available from
Australia Cybernetic Solutions/tenpintec admin@tenpintec.com.au
USA DFX Sound Vision https://dfxsoundvision.com/
UK and Europe
All other places Cybernetic Solutions/tenpintec
