LaneMinder 3


(Supercedes LaneMinder and LaneMinder2)

Lane Intrusion Warning System

Infra-red intrusion detection system designed specifically for the tenpin bowling lane area

tenpintec logo

photos soon


photos soon


  • Manufactured from high quality components
  • Quick field installation
  • 12 month warranty
  • IR dual-beam units are mounted on custom brackets with pc board for RJ-45 socket, LED indicator, audible alarm and intelligent control
  • Control unit is microcontroller based and houses an audible and visual alarm
  • Standard LaneMinder will span up to 40 lanes - higher power IR units are available for larger lane areas
  • Around 80% of bowling centres in Australia have a LaneMinder, LaneMinder2 or LaneMinder3 installed. Many more units are installed in the UK, Europe and the US.
  • Up to four (4) LaneMinder3 systems can be linked together with each monitoring a Zone of bowling lanes (or some other area where patrons are not supposed to be)..

LaneMinder3 Standard

Beam Transmitter (Tx) and Receiver (Rx) Modules are fixed to the side walls of the centre, one at each end, at somewhere between 5 and 15ft down the lanes.

Height of the beams over the lanes should be about 18 inches to 2 feet, so that the beam is not interrupted by a lane machine. This should catch anyone, including a child who tries to walk down the lane.

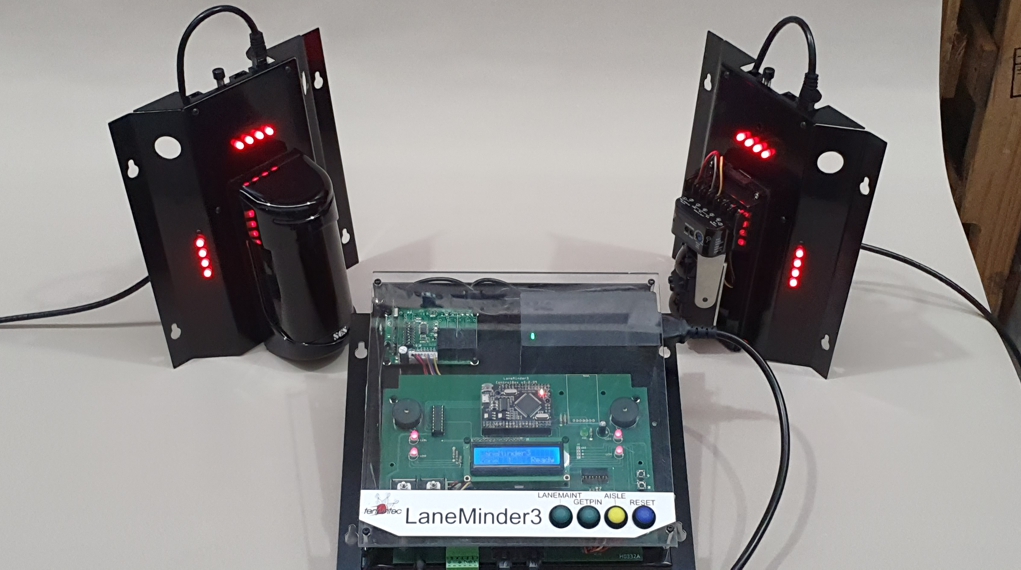

Buzzers sound and high intensity LEDs flash when the Beam is broken.

User adjustable (via menu) time-outs for GETPIN and LANEMAINT to allow staff to walk down the lanes.

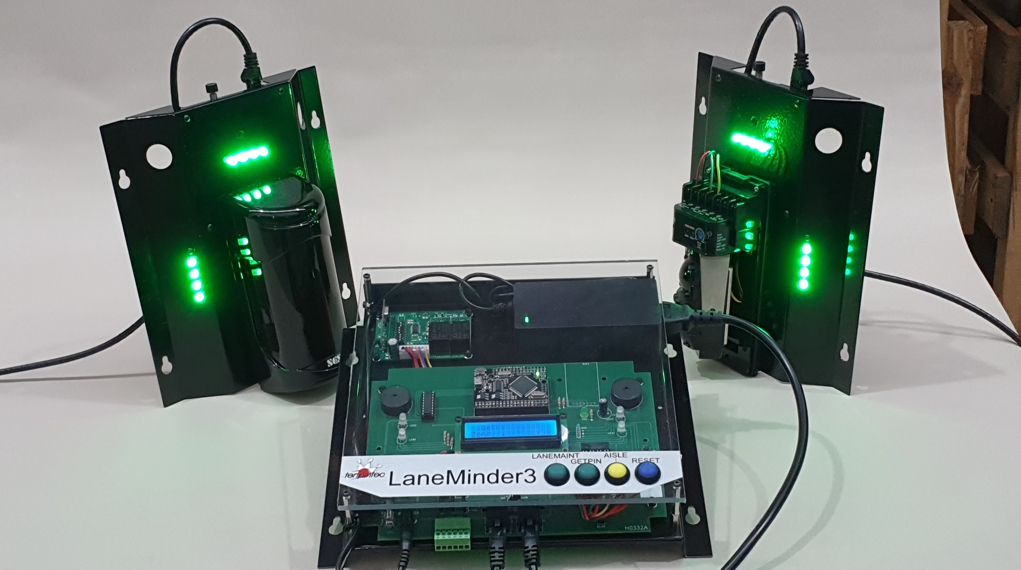

Green LEDs flash while more than 30 sec of timer is left. LEDs flash amber when less than 30 sec.

Remote Control for RESET and GETPIN (or LANEMAINT) with 2 channel keyfob is included.

Contact your public risk insurer and ask if they give premium discounts where a public intrusion warning device such as LaneMinder3 is installed.

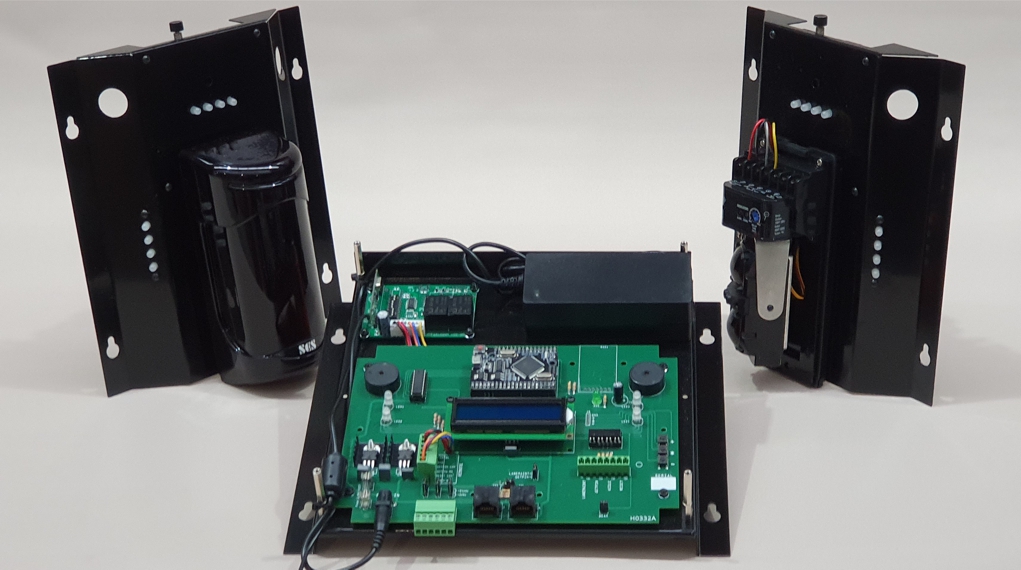

LaneMinder2 Standard kit consists of:

  • 1 x LaneMinder3 ControlBox (includes 2 channel remote control for RESET and GETPIN or LANEMAINT)
  • 1 x LaneMinder3 dual-beam Transmitter Module
  • 1 x LaneMinder3 dual-beam Receiver Module

Cat-6 cables and 24Vdc power supply are available separately.

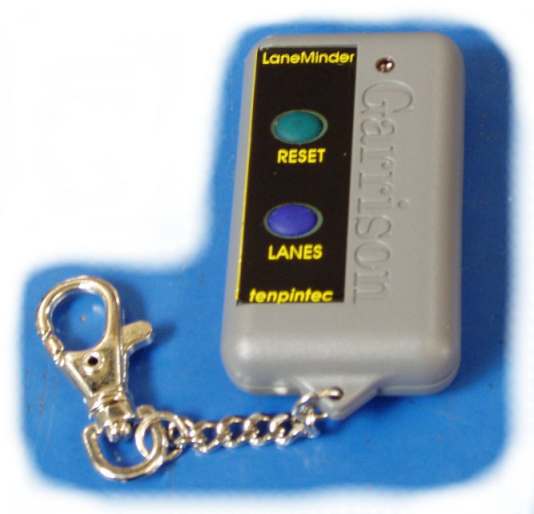

Photo - LaneMinder 2 Remote Transmitter

Remote Key (Two Function Remote Transmitter)

Fitting guides:
  LaneMinder3   Revised 05 MAY 2023
  LaneMinder 2 FAQ   Revised
Ordering information
Part No. Description
CS-LM2 LaneMinder3 - Standard (kit) 5.0kg
  Accessories and Spare Parts
CS-LM3-TX LaneMinder3 - Transmitter Module
CS-LM3-RX LaneMinder3 - Receiver Module
CS-LM2-RC-S LaneMinder2/LaneMinder3 - Remote Key
  LaneMinder3 - RemoteAlarm Module - coming soon
  LaneMinder3 - FrontDesk Module - cmoing soon

Available from
Australia Cybernetic Solutions/tenpintec admin@tenpintec.com.au
UK Bowling Vision/Embassy Services 1227 719799
All other places Cybernetic Solutions/tenpintec
